Avid Pulsus Phono Stage
Pulsus
Embodying the experience gained during the development of our flagship designs, technological advancements have been trickled down to our exceptional but more approachable phono stages.
Designed from first principles, Pulsus is an un-balanced design with outstandingly low distortion and noise across the audio spectrum, retaining and exposing every intricate detail.
Key Features
- MM, MC Low, MC Hi Gain
- Switchable Capacitance
- Seven Loading Values
- Exceptionally Low Noise
- External Shielded PSU
Surpass expectation
Only extremely high-specification components achieve a place within our handcrafted phonostages, each one constructed to military grade specifications for a lifetime of service.

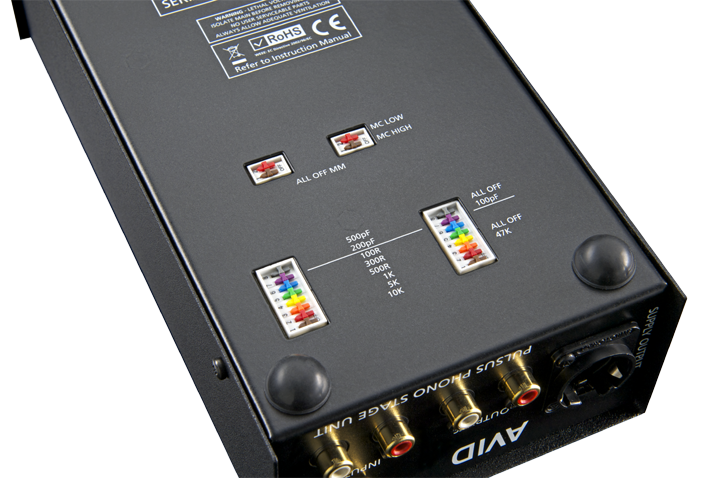

Gain, Resistance and Capacitance are all easily adjustable from the underside of the casework, offering exceptional flexibility and an external regulated supply provides refined smooth power to maintain its poise, revealing layers of detail and delicate musicality that will surpass your expectations.
Hand Crafted

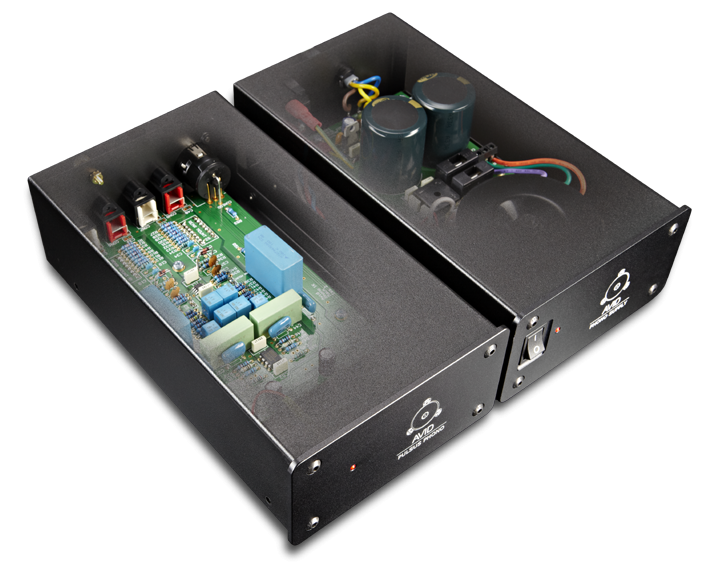

Manufactured within our own facilities, each phono stage is painstakingly hand assembled with every stage being scrutinized. Each bare board PCB is populated and soldered by a skilled producer and assembled into flawless casework with brutal testing during quality control to ensure a faithfully reliable product that will delight vinyl lovers with its pace, dynamics, accuracy – and, above all, its musical integrity.
Specifications
< -81dB MM <-67dB MC
< 0.001%
5Hz – 70kHz ±0.5dB
40dB -60dB -70dB
100R – 300R – 500R – 1K – 5K – 10K – 47K
100pf – 200pf – 500pf
20Ω
REGULATED WITH 35va TRANSFORMER
100-240vac 50/60Hz 10 WATTS MAX
120 x 220 x 70mm (W x D x H)
CONTROL UNIT – 1.0KG (2.2LB) – PSU – 1.7KG (4LB)
