Nagra Classic Phono
Our price: £19,998.00
What HFL Thinks
Nagra Classic Phono – In 1951, Stefan Kudelski, a gifted 22-year-old engineer, developed an extremely high quality, miniature, self-contained audio recorder which he named simply the “Nagra I”. Nagra is a Polish word meaning “will record”. The interest in his invention was immediate. The Nagra II and III followed in the mid to late ‘50s revolutionizing the world of radio broadcasting, cinema and music. Nagra even made it to space with the Apollo mission.

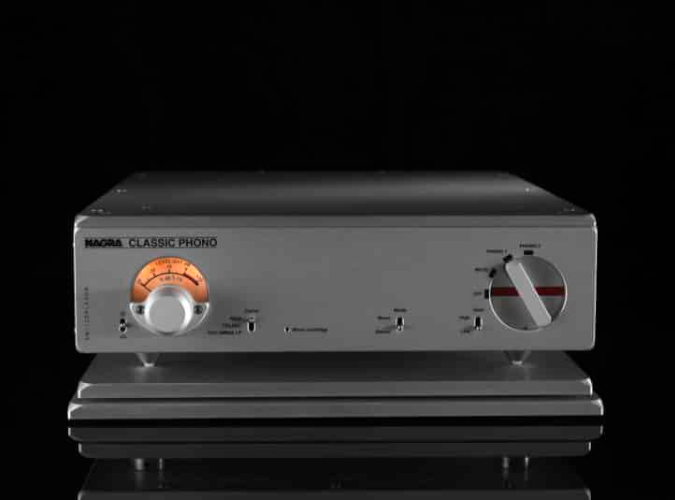

Nagra Classic Phono
After many years of success and esteem, the Nagra VPS is replaced by the Classic PHONO. The VPS, itself inspired by the legendary Nagra PL-P, is a very respected phono stage. The VPS was the base we used and the obvious product to benchmark the new design.
DESIGN
- New generation Nagra custom made input transformers
- Full tube in Class A totalizing four triodes
- Featuring two inputs, one MC / MM and one MM
- Adjustable and customizable cartridge loading

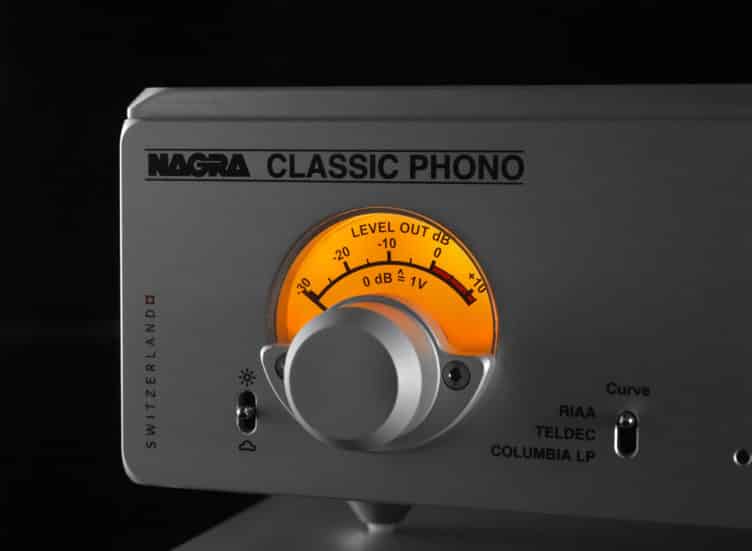

- Selection of RIAA, TELDEC and COLUMBIA curves
- Accommodates mono cartridges
- Mono selector for mono records made with a stereo cutter
- Adjustable gain from 38 to 64 dB
- New built-in silent power supply, can be upgraded with a Classic PSU
INPUTS

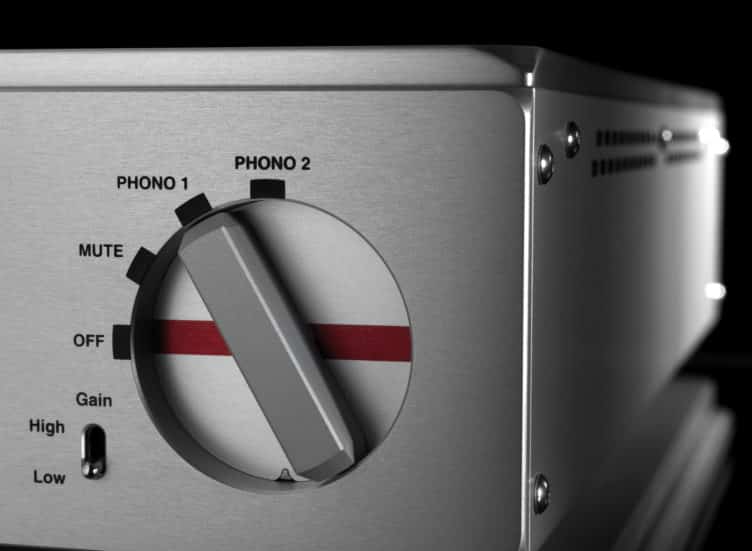

The MC input features a new generation of custom made Nagra transformer using the special magnetic core of the HD PREAMP. The gain selection on the front panel allows you to match the cartridge or the record very easily. For MC cartridges, gain of 54 or 64 dB, for MM, 38 or 48 dB. The various and numerous settings allow you to match your cartridge collection and the record very closely.
VACUUM TUBES
The Classic PHONO exclusively uses tubes as active electronic components.
- 2x E88CC/ 6922
- 1x ECC81/B739
- 1x ECC83/B759
All the tubes are going through and individual selection by Nagra Laboratory.
SOUND AND IMPRESSION
The first notes strike with density and extension. The Classic PHONO impresses immediately with its sheer quality. The linear phase response is clearly audible with a very faithful stereo and 3D image. The timbre of the instruments is extremely natural. After a few minutes of critical listening you simply want to rediscover your music collection and enjoy it! The Classic PSU power supply, derived from the HD line, will take the Classic PHONO to new heights.
Specification
ELECTRONICS
| Transformer ratio: | 16 dB |
| Tube stage gain:
@ 1 kHz, no load |
MM Gain switch LOW 37.7 dB Gain switch HIGH 47.7 dB MC Gain switch LOW 53.9 dB Gain switch HIGH 63.9 dB |
| Frequency response: | 20 Hz – 50 kHz +0.6 dB RIAA, TELDEC, -0.2 dB COLUMBIA LP 100 Hz – 50 kHz +/- 0.2 dB |
| Signal to noise ratio: | > -82 dB (ASA A) With dummy loads connected to the inputs |
| Total harmonic distortion (THD + N): | Please refer to the below graph |
| Crosstalk: | > -75 dB (typically > -82 dB) |
| Interchannel phase: | < 4° (typically 0.35°) @ 20 kHz |
| Output level: | 1 V RMS for 0 dB Large tolerance to smoothly provide 2 V RMS |
| Output impedance: | < 500 Ω (typically 470 Ω) |
| Vacuum tubes:
Selected by Nagra Laboratory |
2x E88CC/ 6922 1x ECC81/B739 1x ECC83/B759 |
| Power supply: | Internal 100 – 240 V~ ±10% / 50-60 Hz With Mains or with optional CLASSIC PSU 1x 12.6 V / 1.5 A w (Standby <1 W) |
| Power consumption: | PMAX 35 W |
| Mains fuse: | T 500 mA FST 5 x 20 mm 250 V |
GENERAL
| Operating temperature: | +15 °C to +35 °C Moderate climate +59 °F to +95 °F |
| Operating environment: | Indoor only IP30 |
| Weight: | 5.4 kg – 11.9 lbs CLASSIC PHONO unit alone with 1x MC / MM input and 1x MC input |
| Dimension: | 350 (390 from nose of the modulometer to back of the connectors) x 277 x 80mm (15.4 x 10.9 x 3.2 inches) – Add 3cm or 1.2 inches with a VFS plate placed under |
