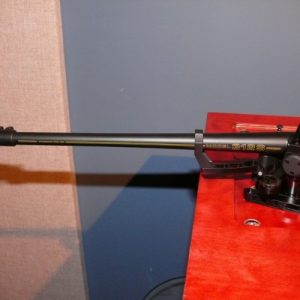

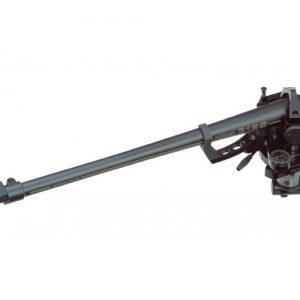

SME Series 312S Tonearm
Reference Only, Can Not Be Purchased Separately.
What HFL Thinks
SME Series 312S Tonearm – It goes without saying that the pick-up arm on your turntable is a critical part to any vinyl replay system, it does such an important job and being able to set up your arm correctly is critical to getting the maximum sound quality from the grooves of your vinyl. SME are described as makers of the best pick-up arms in the world for very good reason, these are not just tone-arms but precision pieces of engineering allowing you to set up your arm and cartridge to get the best sound possible. Offering a wide range of alternatives there is something for everyone so please come in to HFL to experience an SME arm for yourself.
Magnesium Tonearm
The Model 312S precision pick-up arm is an extension of the popular Series 300 range designed with maximising performance and ease of use in mind. It has a detachable magnesium headshell to provide the convenience of rapid cartridge interchange whilst maintaining a degree of rigidity normally only associated with arms of one piece design.
The 12 inch magnesium construction takes advantage of the reduction in Maximum tracking error/distortion afforded by the greater arm length when compared with 9 inch models.
Magnesium Tonearm
The Model 312S precision pick-up arm is an extension of the popular Series 300 range designed with maximising performance and ease of use in mind. It has a detachable magnesium headshell to provide the convenience of rapid cartridge interchange whilst maintaining a degree of rigidity normally only associated with arms of one piece design.
The 12 inch magnesium construction takes advantage of the reduction in Maximum tracking error/distortion afforded by the greater arm length when compared with 9 inch models.
Features:
- The 12in pressure die-cast magnesium construction takes advantage of the reduction in maximum tracking error/distortion afforded by the greater arm length when compared with 9in models.
- Unique pressure die-cast magnesium shell detachable and interchangeable without disturbing cartridge or wiring.
- Design of headshell clamping ensures a rigid junction with the tone-arm.
- Internal constrained layer damps minute residual vibrations making tone-arm acoustically inert.
- Stainless steel cross shaft, ground and thread ground. Carried in massive yoke on 10mm precision ball races. Axes at record mean level to minimise warp-wow.
- Unique assembly gives high rigidity and allows bearings to be critically adjusted before the tone-arm is fitted.
- Stainless steel vertical shaft, ground and thread ground, with integral 16mm diameter flange to couple shaft and yoke.
- 23mm diameter steel pillar, heat treated, ground and honed, carries two 17mm precision ball races, widely spaced to resist tilt.
- Anti-skate control operates through tension spring and filament. Dial calibrated to correspond with VTF and has positive OFF position.
- Lowering/raising control gives smooth positive action. Height of lift can be adjusted.
- Dual-lock base provides movement control with high rigidity.
- Tungsten-alloy balance weight carried on two-point suspension. Extra-low inertia design assists warp riding.
- Underslung weight housing corrects centre of gravity and provides non-reflective tone-arm termination.
- Swivelling, damped output socket minimises vibration transmission in sub-chassis use.
- Reference lines on tone-arm facilitate VTA setting.
- Fine adjustment of horizontal tracking angle (HTA).
- Alignment protractor designed to provide HTA setting with greater accuracy.
- Cartridge leads and internal wiring in Silver litz.
- Balanced Silver-hybrid audio lead with gold plated phono plugs

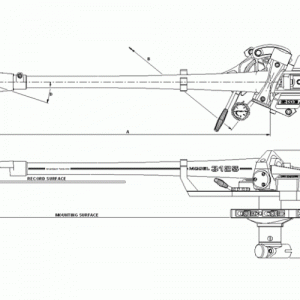

DIMENSIONS:
- Distance from pivot to stylus: 308.80mm
- Distance from pivot to turntable centre: 295.60mm
- Cartridge fixing centres:12.70mm
- Offset Angle: 17.28º
- Linear Offset: 91.54mm
- Overhang: 12.60mm
- Height above mounting surface max. 87.90mm, min. 56.40mm
- Height of record surface above mounting surface max. 55.90mm, min. `24.40mm
- Depth below mounting surface 56.75mm
- Radial clearance for balance weight 73.00mm
SPECIFICATIONS:
- Effective Mass: 14.0g
- Cartridge balance range: 7.0-19.0g
- + One accessory weight – up to 24.5g
- + Two accessory weight – up to 30.0g
- Maximum tracking error: 0.009°/mm
- Null points: Inner 63.62mm, Outer 119.46mm
- Internal wiring: Ultra-flexible Silver litz
- Audio lead: Length 1.2m
- Weight net: 820.0g
