Trafomatic Audio Elysium – Mono Power Amplifier

Please call for price

What HFL Thinks

Elysium Mono Power Amplifier – Trafomatic Audio are all about putting the music first but also in designing beautiful HiFi equipment, based in Serbia they were founded in 1997 by Sasa Cokic and they have gone from strength to strength since then winning multiple awards and getting stunning reviews for their range of HiFi Equipment.

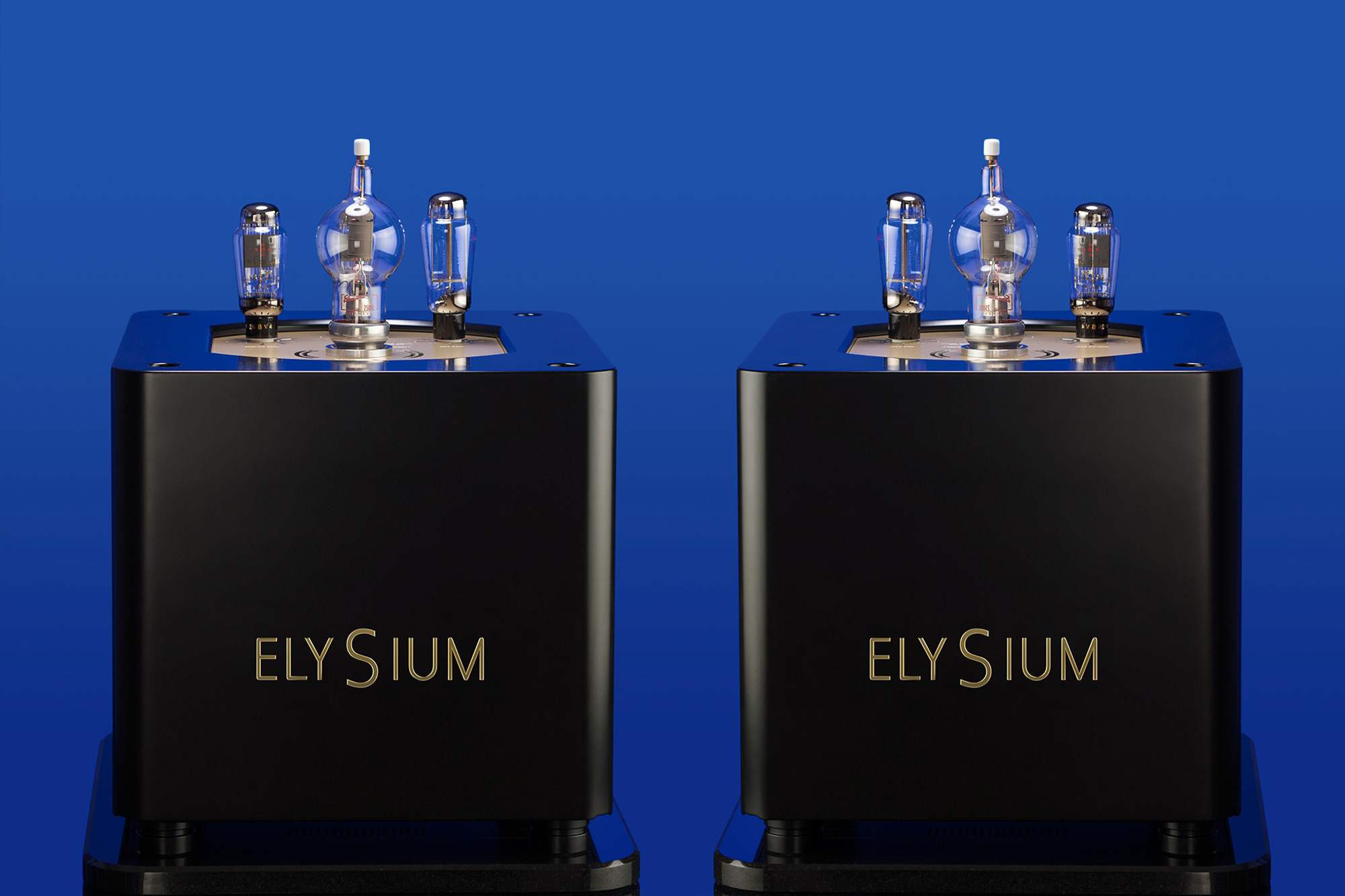

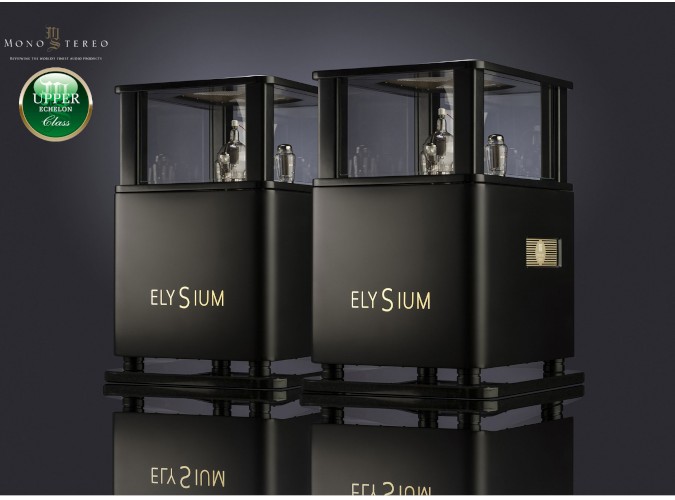

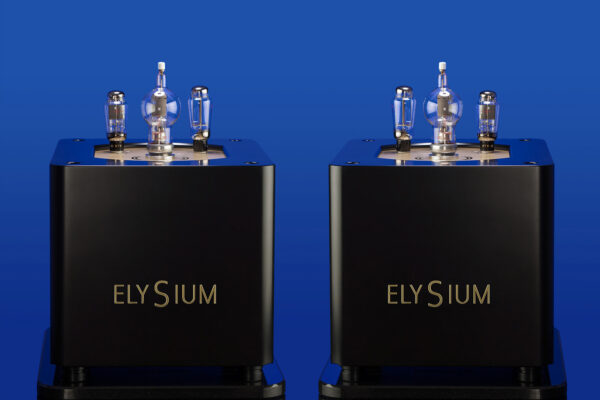

Elysium – Mono Power Amplifier

After 20+ years of exploring the exotic and ultra high end audio music reproduction we’re proudly presenting our cost no object, flagship state of the art mono-block power amplifiers. Trafomatic Audio was always pursuing the very different path of the musical reproduction beyond typical audiophile norms and with the inner momentum of pure, unaltered sonic performance at the highest level. In the ultimate pursue the sum of the parts can only be subordinate to the utmost purity and Elysium defines what is possible beyond typically given high-end audio industry norms. We care to differ and we dare to differ!



Click here for full description







Specifications

Output power: 70W

Class of operation: Full DHT SE
Class A  20W, Class A1 20-70W

Tubes complement: 2x 20B-V4 EML

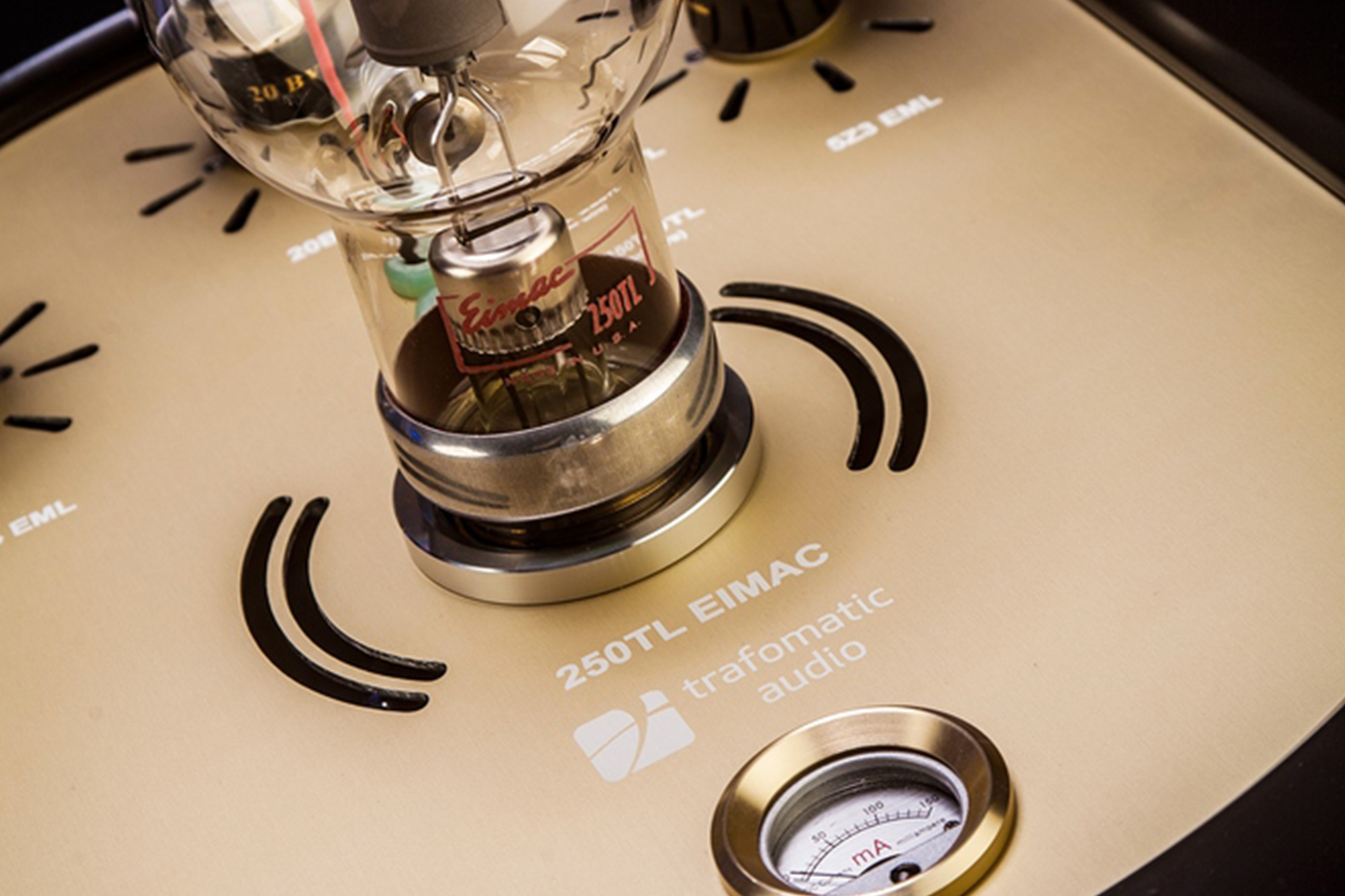

1x 5Z3 EML , 1x 250TL EIMAC

Inputs: RCA/XLR

Tubes protect: Wood/glass cover

Outputs: 4 and 8 ohms

Input sensitivity: 3.5Vrms

THD %: 0.3% – 1W/1KHz, 4% – 70W/1KHz

Frequency bandwidth:10Hz(-2dB)-60KHz( -3dB)

S/N Ratio: 83dB

Input inpedance: 47K

Power consuption: 500VA

Input voltage: 230V/50Hz (100-120-220-240V available on request)

Size: 620x520x800mm

Weight: 85kg per mono

Downloads

elysium_Manual
